What is Context Coloring?

I made a plugin for the Vim text editor to highlight JavaScript code according to its scope. This was inspired by an idea by Douglas Crockford in his presentation at YUIConf 2012. See from around the 16 minute mark onwards. I can’t really claim to understand monads – apparently the curse is still in effect! – but this idea for highlighting functions in JS struck me as a really good idea, and something that I could do in Vim. Well, I finally got around to doing it. This is what it looks like in action:

Notice how functions defined inside other functions are progressively colored differently, making their scope clear. Also, closure variables are colored according to scope they were defined in. I find that this can help make such code easier to read and understand. It is particularly helpful when writing/reading code in a ‘functional’ style. The example code here is from a book I’m reading: Functional JavaScript by Michael Fogus.

Other Editors/Implementations

See this discussion on Google Plus for information on other implementations for other editors.

Installation

Check the README on the Github page

Background

One of the common misunderstandings about JavaScript is that it does not provide encapsulation, and therefore is not fully capable of Object Oriented Programming. While EcmaScript 3 does not have syntax to specify which members of an object are private or read-only, this is addressed in EcmaScript 5, with the new Object API. However even without the new syntax, it is perfectly possible to achieve encapsulation in JavaScript objects.

The key is understanding how scope works in JavaScript. The main thing to keep in mind is that JavaScript is function scoped: variables are visible anywhere within a function, including within functions which are defined within that function. This is the property of ‘closure’.

The other important thing to understand is that JavaScript does not have Classes, but rather constructor functions. So when you say,

1

var dog = new Dog();

What really happens is that the Dog constructor function gets called, with ‘this’ set to the prototype of the constructor. The prototype is simply another object, which defaults to a plain old Object, but can be specified in code, eg.

1
2
3
4

Dog.prototype = {
        bark: function () {
    }
}

The effect of this is that the dog object will be able to use members which exist in the prototype object, so dog.bark() will work.

Encapsulating State

So how do we get ‘private’ members in objects? The trick is to use the closure property of the constructor function itself, and define some accessor methods within it:

1
2
3
4
5
6

function Dog (name) {

    this.getName = function () {
         return name;
    }
}

So now your dogs can be given a new name when they are created, but the name cannot be directly accessed or changed from the outside.

1
2
3

var fido = new Dog("Fido");
console.log(fido.getName());//"Fido"
console.log(fido.name);//undefined

If you want to make a private variables which are not arguments to the constructor, you can do that by simply declaring them at the top of the constructor function:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

function Dog (name) {

    var age = 0;

    this.getName = function () {
         return name;
    }

    this.getAge = function () {
         return age;
    }

    //example of setter:
    this.setAge = function (newAge) {
          age = newAge;
    }
}

So we could continue in this way, and declare all the methods of the Dog inside the constructor function, and enjoy the benefits of having encapsulated properties. That would work fine, but the downside is that these functions are being re-created every time the constructor is called. This is a waste of memory.. not sure how much of an issue this is in reality unless you’re making thousands of them, but it is something to avoid if possible.

Preventing Memory Loss (What memory problem?)

While it is not possible to completely avoid some duplicate functions, the memory used can be mitigated as follows: if you make getters/setters for all your properties that you want to be private, then you can define the rest of the methods on the prototype to use the getters/setters. This way the only duplicated functions are the getters/setters, which should be very lightweight (couple lines each), and shouldn’t result in memory issues, unless you’re making a particle system or something.

Here is an example of this:

1
2
3
4
5

//...after previous code

Dog.prototype.getAgeInDogYears () {
    return this.getAge() * 7;
}

So this way you have the protection of encapsulated state, and avoid duplicating all your methods in every instance, thanks to prototypal inheritance. Now getters & setters may be distateful to you, but it is the best solution to this issue I can see, and it has the additional benefit of adding a layer of abstraction to your code, so you could change the way the state values are implemented, without changing a bunch of references to properties throughout the class.

Inheriting

As always, for inheritance to work with non-empty constructors, it is important that you explicitly call the prototype’s constructor:

1
2
3
4
5
6

function Daschund(name) {
    //...
    Dog.call(this, name);
}

Daschund.prototype = new Dog();

The Behaviour Encapsulation Dilemma

So we have private variables which can only be accessed by the get/set functions we declared in the constructor. But what about private functions? They too can be declared in the constructor function as inner functions:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

function Dog (name) {

    var age = 0;

    //private function
    function scratch() {
        console.log("scratch");
    }

    this.getName = function () {
         return name;
    }

    this.getAge = function () {
         return age;
    }

    //example of setter:
    this.setAge = function (newAge) {
          age = newAge;
    }
}

The limitation here is that while such inner functions can be called by other functions which are defined within the constructor, they cannot be called by prototype methods. You could put all methods which need to access the private methods also inside your constructor, but then you’re back to the memory issue.

A way around this is to wrap the entire definition of the constructor and prototype in a closure function, which contains the private methods. This is basically the module pattern, and indeed if you are defining a constructor function inside a module, you can take advantage of the hiding effect of the module.

But there is an important gotcha here: these methods (and any other vars they access) are static: they are shared between all instances created with the constructor function contained within the same module. So you need to be aware of this. This is not a problem if you have static constants and ‘pure functions’ without side-effects encapsulated in your module. But it is potentially dangerous that one instance could call a method which could affect other instances… a kind of state contamination which is best avoided. Static and stateful just don’t go well together.

There’s also the issue that the module pattern may be too effective in preventing behaviour modification, and undermine the dynamic nature of the language.

Perhaps perhaps private instance methods are not absolutely necessary, and may be detrimental. AFAIK Smalltalk does not have them either, and takes a similar approach to that outlined here, of encapsulating state by only exposing methods (strictly speaking, ‘messages’, in Smalltalk), not properties. And Smalltalk is the archetypal Object Oriented language.

To be honest, I’ve never really found myself feeling the need for all this privacy, but I’m excited to have found a way to do it without using a third party Class system for JavaScript.

If you are a web developer, you have most likely thought to yourself occasionally, “I really wish I didn’t have to hit refresh a million times a day to see my changes take effect…”. Well, finally there is an answer: LiveReload comes to the rescue with a tool which automatically refreshes the browser whenever some of the files used by it are changed.

The 2.0 version is a nice Mac App, which I am using at home, but I also tried out version 1.x which is distributed as a RubyGem, and it worked fine on Ubuntu… and it apparently works fine on Windows too (after you have installed Ruby… see instructions on the GitHub readme).

After you have installed the app or gem, you can either embed a JavaScript on your page, or install browser plugins . I opted for the plugin route, which adds a button to your browser chrome allowing you to enable LiveReload for the current URL. Note that it is necessary to restart the browser completely for it to work. This means on Firefox you will need to restart twice: once to install the plugin, and again to get it working. Another issue I saw with Firefox was that the button didn’t show up on the addons toolbar, so I had to ‘customize’ my toolbars and add the ‘LR’ button which was now available as an option.

The other thing you need to do is tell LiveReload which folders to watch for changes. On the Mac App, you can use the Finder to select the folders, while with the RubyGem you need to give the folders as command line arguments.. or just type ‘livereload’ in the folder you want to watch, if there is only one.

Another benefit of LiveReload is that you can hitch multiple browsers up at once, to verify that your code behaves consistently across browsers. Great for cross-browser testing while you work.

Furthermore, when you are writing specs or unit tests for your code, you can have the tests running in another browser, and watch as they pass or fail, all without leaving your editor.

Finally, the version 2 has options to auto-compile SASS, Less, CoffeeScript and similar meta-languages which compile into HTML, CSS, or JavaScript. While the Mac App is initially free to use (it is still beta, but I did not experience any problems), I see that the update to the final 2.0 version will require some payment. However, if you just want auto-refreshing on changes, without pre-compilation, then you can continue to use the 1.0 version (or presumably the Beta App ?).

In case you are wondering how LiveReload works, I took a gander at the Javascript which the plugin embeds, and it uses WebSockets to receive notifications from the livereload app, which starts up a socket server

I think LiveReload is going to make my experience as a web developer much less annoying and more Zen-like :)

ps. I am not being paid by LiveReload to say any of this.. If you know of any other solutions to this perennial problem, I would certainly be interested to hear of them!

Using Vim for JavaScript Development

Here is how I do it …

Plugin management

I recommend using pathogen to manage plugins, as then you can simply clone the plugin repos into your .vim/bundle directory and you’re done. (and run ‘:Helptags’ to install help).

While this is not bad, I personally prefer another Javascript syntax definition file, which provides a more complete set of keywords (eg. browser events such as ‘onmouseover’), and thus highlights them differently. To use it, download and copy it to

~/.vim/syntax/javascript.vim

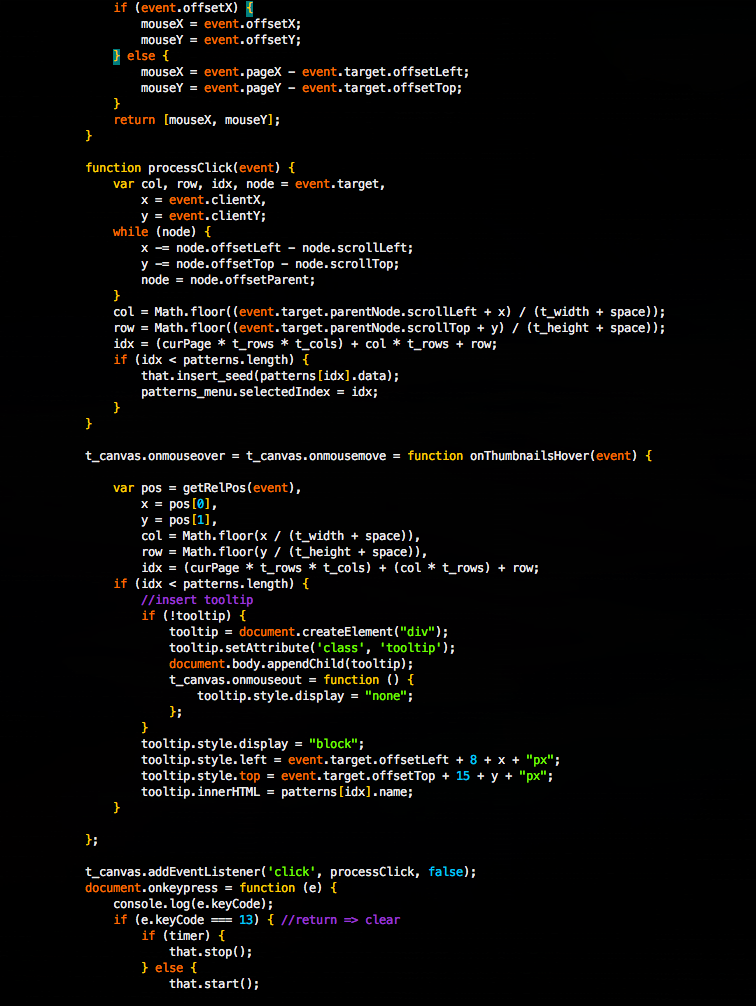

Now when viewing the same .js file, you will notice a few differences:

Folding

Another feature which this syntax file adds is the ability to fold functions. You can fold a function by positioning the cursor within it and typing ‘zc’. Then it will collapse to a single blue line with the function definition highlighted in it, and the number of lines contained within the fold. This can be a handy way to defocus attention from functions you are not interested in. It works in nested functions as well.

Whitespace settings

I generally want Javascript to have spaces instead of tabs, with 4 spaces for each indent level. This can be achieved by adding the following content as the file .vim/after/ftplugin/javascript.vim

" set whitespace for javascript to always use 4 spaces instead of tabs
setlocal expandtab
setlocal shiftwidth=4
setlocal shiftround
setlocal tabstop=4

Indentation

Vim’s default indent file for javascript merely sets the indentation to cindent… this is not very effective. For best results, go get the web-indent plugin.

Then you can use the builtin indent commands (essentially ‘=’ in command mode, combined with a motion, eg. ‘gg=G’ for the whole file, or just select some text in visual mode and hit ‘=’).

I just managed to submit my JS10K entry in time, having spent a lot of time implementing compression hacks like converting the code and data into images using node-canvas. Turns out I may not have needed to worry about that as the competition now lets you submit a .zip file, and only considers the size of the .zip file, not the files within it. Somehow I missed that. Oh well.

Here is a link to one of my favorite lifeforms, the Frothing Puffer:

In order to meet the size restriction of the competition, I had to leave out some functionality that I developed earlier, such as thumbnails of the lifeforms. So here is the uncut version, with thumbnails, and all of the lifeforms in it.

Actually, there are a couple of features in the competition version which are not in this version: The ability to link to a pattern using the URL, and also the ability to edit the seed pattern (albeit in text form). I have thoughts of making a version with a more visual editor, which would let you turn on cells by clicking on them, and perhaps save and share them with others. But I’m not sure if I’ll get around to it… life is short :P

I must give credit to the David Silver’s LIFE Lexicon, where I obtained the seed patterns. As always, Da Code is available on GitHub. Note that the competition version is in the JS10K branch.
